Product Overview

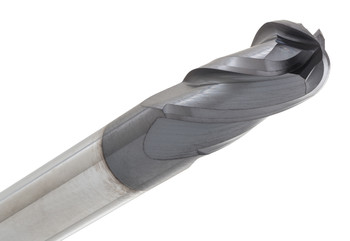

The CGS Tool 142-0625-ALTiN is a 1/16" diameter 4-flute solid carbide ball end mill built specifically for fine profile and contour milling, where the tool has to fit inside a genuinely small feature. It belongs to the 142 Series, CGS Tool's general-purpose ball nose line.
What sets this tool apart is the .0312" radius, made for miniature pockets and light blending, paired with an ALTiN coating that gives this small cutter added protection against heat and wear. Running a 30° helix in a single-end build, it holds up through mild steel, stainless, cast iron, titanium, non-ferrous material, plastics, and composites.
Tool Specifications:
- Diameter: 1/16"
- Shank: 1/8"
- Length of Cut (LOC): 3/16"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .0312"
- Series: CGS 142 Series
- Part No: 142-0625-ALTiN
Key Performance Features:
- 4-flute ball end design for fine contour milling
- .0312" radius supports miniature rounded features
- ALTiN coating adds heat and wear resistance
- 30° helix supports smooth cutting control
- Handles finishing, blending, and small pocket machining
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
