Product Overview

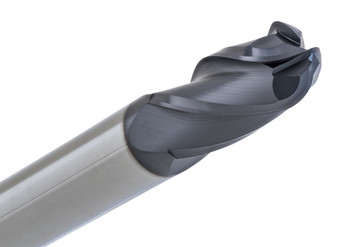

The CGS Tool 142-1406 is a 9/64" diameter 4-flute solid carbide ball end mill from the 142 Series, sized for small contour and profile milling. Its .0703" radius is useful for light surface blending and rounded pocket detail work.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix matched to steady, practical cutting in general CNC applications. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's a clean choice for finishing work.
Tool Specifications:
- Diameter: 9/64"
- Shank: 3/16"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0703"
- Series: CGS General Purpose (142 Series)
- Part No: 142-1406
Key Performance Features:
- 4-Flute ball end design for small profile work
- .0703" radius matched to diameter for smooth rounded features
- 30° helix with precision-ground cutting edges
- Single-end solid carbide construction
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
