Product Overview

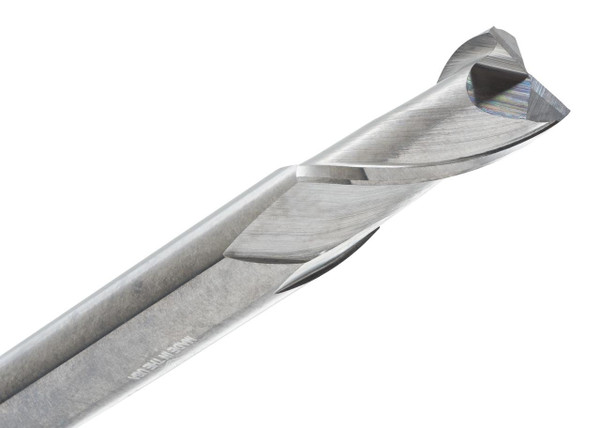

The CGS Tool 420-1406 is a 9/64" diameter 2-flute solid carbide square end mill from the 420 Series, built with a double-end design so smaller milling jobs get more usable value from a single cutter. It sits in that useful spot between a disposable small tool and a full-value everyday cutter.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix matched to keep the cutting action simple and dependable. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's useful for small slots and flat-bottom work.
Tool Specifications:
- Diameter: 9/64"
- Shank: 5/32"
- Length of Cut (LOC): 5/16"
- Overall Length (OAL): 2"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS General Purpose (420 Series)
- Part No: 420-1406
Key Performance Features:
- 2-Flute square end design for small-feature milling
- Double-end body extends usable tool life
- 30° helix with precision-ground cutting edges
- Uncoated construction for practical general-purpose use
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
