Product Overview

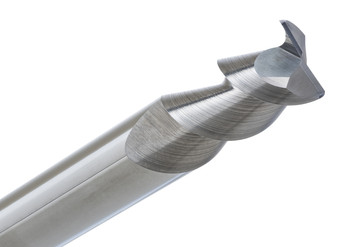

The CGS Tool 2021 has a 3/8” diameter 2-flute solid carbide square end mill. It is built for maximum material removal and clean surface precision in aluminum, non-ferrous metals, and plastics. It’s part of the ferocious series, and it’s meant for machinists who want top level results at extreme feed rates, like you’re pushing it hard.
Made from premium sub-micro grain carbide, the 2021 has a 55° high helix for stronger chip evacuation, less cutting force, and really solid surface finishing. The polished cutting edges plus a free-cutting geometry help minimize built-up edges, while still keeping an exceptional tool life even when you’re running high-speed CNC applications.
Tool Specifications:
- Diameter: 3/8”
- Shank: 3/8”
- Length of Cut (LOC): 1-1/2”
- Overall Length (OAL): 3”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: Bright (Uncoated)
- Series: CGS Ferocious
- Part No: 2021
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
