Product Overview

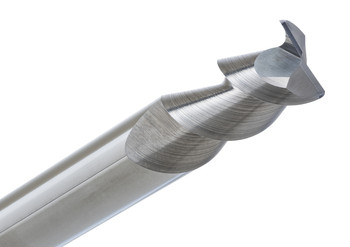

The CGS Tool 2042 has a 1/2” diameter, 2-flute solid carbide square end mill. It is meant for maximum chip removal and that extra clean surface finish in aluminum, non-ferrous metals, and plastics. Belonging to the ferocious series, it’s made for machinists who want serious performance even when the feed rates are out there, at the extreme level.
Made with premium sub-micro grain carbide, the 2042 comes with a 55° high helix that helps with chip evacuation, lowers cutting forces and keeps surface finishes looking really sharp. The polished cutting edges and the free-cutting geometry help cut down built-up edges , while still keeping a great tool life, even during high-speed CNC work.
Tool Specifications:
- Diameter: 1/2”
- Shank: 1/2”
- Length of Cut (LOC): 3”
- Overall Length (OAL): 5”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: Bright (Uncoated)
- Series: CGS Ferocious
- Part No: 2042
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request

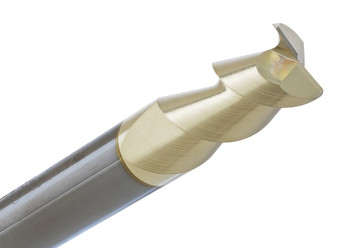

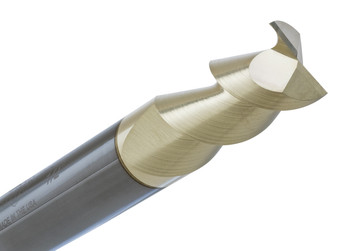

- ZrN coating option available for extended life and cleaner cuts
