Product Overview

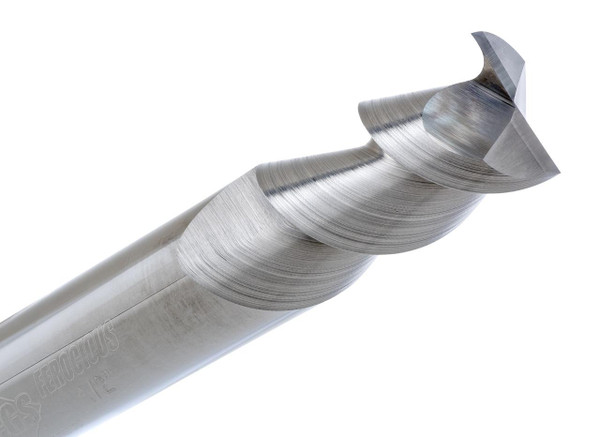

The CGS Tool 2045 is a 9/16” diameter, 2-flute solid carbide square end mill , made for folks who want big material removal and very clean surface results in aluminum, non-ferrous metals, and plastics. It comes from the ferocious series, so it’s meant for machinists that need top level performance even when the feed rates get extreme or wild.
Made from premium sub-micro grain carbide, the 2045 has a 55° high helix , which helps with chip evacuation, keeps the cutting forces lower, and delivers a noticeably smooth finish. The polished cutting edges plus the free-cutting geometry work together to reduce built-up edges, but still keeps the tool working longer, including when you run high speed CNC setups.
Tool Specifications:
- Diameter: 9/16”
- Shank: 9/16”
- Length of Cut (LOC): 1-1/4”
- Overall Length (OAL): 3-1/2”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: Bright (Uncoated)
- Series: CGS Ferocious
- Part No: 2045
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating option available for extended life and cleaner cuts
