Product Overview

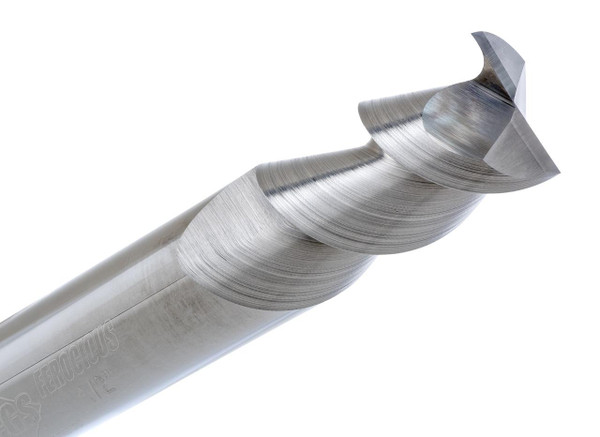

The CGS Tool 2063 has a 3/4” diameter 2-flute solid carbide square end mill. It is made for maximum metal removal and high surface precision on aluminum , non-ferrous materials , and plastics . It comes from the ferocious series, so it's mainly for machinists who need serious performance even when running at extreme feed rates.
Manufactured using premium sub-micro grain carbide, the 2063 has a 55° high helix , which helps with chip evacuation , brings down cutting forces, and keeps the surface finishing really clean . The polished cutting edges and free-cutting geometry help reduce built-up edges, and they do it while still keeping strong tool life , even during fast , high-speed CNC work.
Tool Specifications:
- Diameter: 3/4”
- Shank: 3/4”
- Length of Cut (LOC): 3-1/2”
- Overall Length (OAL): 6”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: Bright (Uncoated)
- Series: CGS Ferocious
- Part No: 2063
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating option available for extended life and cleaner cuts
