Product Overview

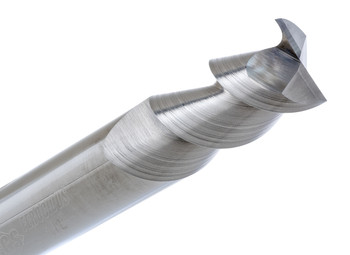

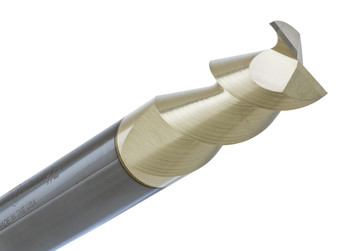

The CGS Tool 2063-S has a 3/4” diameter 2-flute solid carbide square end mill. It is made to push maximum material removal and keep surface precision steady when you’re working in aluminum, other non-ferrous metals, and plastics. It comes from the ferocious series , so yeah it's basically for machinists who want top tier performance, even when they’re running at extreme feed rates.
Built out of premium sub-micro grain carbide the 2063-S has a 55° high helix, which helps with smoother chip evacuation, lowers cutting forces, and gives those really clean surface finishes. The polished cutting edges plus a free-cutting geometry cuts down on built-up edges, but still keeps the tool life strong, even during high-speed CNC work, you know the kind where everything’s happening fast.
Tool Specifications:
- Diameter: 3/4”
- Shank: 3/4”
- Length of Cut (LOC): 3-1/2”
- Overall Length (OAL): 6”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: ZrN
- Series: CGS Ferocious
- Part No: 2063-S
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating provides extended tool life and cleaner cuts in non-ferrous materials
