Product Overview

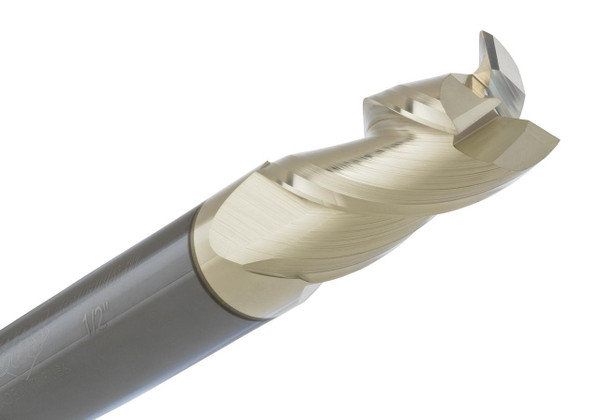

The CGS Tool 5366-S is a 7/8" diameter 3-flute solid carbide square end mill from the Ferocious 3x 5300 Series, built for aluminum and non-ferrous jobs where aggressive stock removal needs to pair with a strong finish. The ZrN coating supports cleaner cutting specifically in aluminum applications.
With a variable helix, variable pitch, and tuned wiper end geometry,, you can reduce chatter, harcut whilemonics, of smooth the cut while still being able to run a high feed in non-ferrous milling, especially for aluminum, copper, brass, and other non-ferrous metals plus plastics and composites.
Tool Specifications:
- Diameter: 7/8"
- Shank: 7/8"
- Length of Cut (LOC): 3"
- Overall Length (OAL): 6"
- Flutes: 3 - Square End
- Material: Solid Carbide
- Coating: ZrN
- Radius: No
- Series: CGS Ferocious 3x 5300 Series
- Part No: 5366-S
Key Performance Features:
- Aluminum and non-ferrous milling handled by a 3-flute square end design
- ZrN coating supports cleaner aluminum cutting
- Wiper end geometry improves surface finish
- Variable helix and variable pitch reduce chatter and harmonics
- Built for strong feeds and efficient stock removal
- Ideal for aluminum, copper, brass, non-ferrous metals, plastics, and composites
