Product Overview

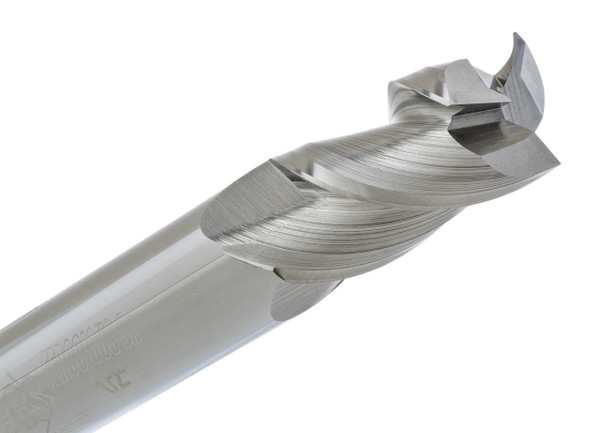

Aluminum shops running larger parts need a tool that can clear material fast without leaving a rough surface behind, and the 5366 is built for exactly that. This 1" diameter 3-flute square end mill comes from the Ferocious 3x 5300 Series, CGS Tool's line built specifically for non-ferrous work at higher feed rates.
What separates it from a standard square end mill is the combination of wiper end geometry, variable helix, and variable pitch, all working together to cut down on chatter and harmonics during aggressive cuts. That combination lets shops push feeds further than a conventional tool would allow while still walking away with a clean finish. Aluminum, copper, brass, plastics, and composites are where this cutter earns its keep.
Tool Specifications:
- Diameter: 1"
- Shank: 1"
- Length of Cut (LOC): 1-1/2"
- Overall Length (OAL): 4"
- Flutes: 3 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: Ferocious 3x 5300 Series
- Part No: 5366
Key Performance Features:
- 3-flute square end built for larger non-ferrous jobs
- 1" diameter supports strong, fast material removal
- Wiper end geometry improves surface finish quality
- Variable helix and variable pitch cut down on chatter
- Built to handle extreme feeds without losing control
- Best suited to aluminum, copper, brass, plastics, and composites
