CR5366.030-S

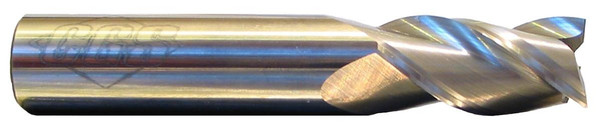

The CGS Tool CR5366.030-S is a 1" diameter 3-flute solid carbide corner radius end mill from the Ferocious 3x CR5300 Series, sized for larger aluminum and non-ferrous jobs where edge strength and finish quality both need to hold up.
The .030" corner radius supports the cutting edge, and the ZrN coating helps with cleaner aluminum cutting. Variable helix, variable pitch, and wiper end geometry reduce chatter and improve finish during high-feed milling.

Tool Specifications:

• Diameter: 1"
• Shank: 1"
• Length of Cut (LOC): 1-1/2"
• Overall Length (OAL): 4"
• Flutes: 3 - Corner Radius
• Material: Solid Carbide
• Coating: ZrN
• Radius: .030"
• Series: CGS CR5300 / Ferocious 3x Series
• Part No: CR5366.030-S

Key Performance Features:

• Non-ferrous machining handled by a 3-flute corner radius design
• .030" radius improves cutting-edge strength
• ZrN coating supports cleaner aluminum cutting
• Wiper end geometry improves surface finish
• Variable helix and variable pitch reduce chatter and harmonics
• Ideal for aluminum, copper, brass, non-ferrous metals, plastics, and composites
