Product Overview

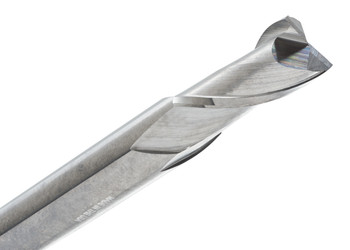

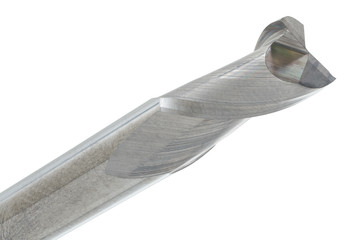

The CGS Tool 220-1562 is a 5/32" diameter 2-flute solid carbide square end mill from the 220 Series, sized for accurate small-scale milling where clean slots and controlled flat-bottom cuts are the goal. It fits neatly into everyday CNC work without needing a larger cutter.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a single-end design matched to good chip space in smaller cuts. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's a controlled, dependable everyday tool.
Tool Specifications:
- Diameter: 5/32"
- Shank: 3/16"
- Length of Cut (LOC): 5/16"
- Overall Length (OAL): 2"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS General Purpose (220 Series)
- Part No: 220-1562
Key Performance Features:
- 2-Flute square end design for controlled small-feature cutting
- Single-end solid carbide construction
- 30° helix with precision-ground cutting edges
- Uncoated construction for standard shop use
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
