Product Overview

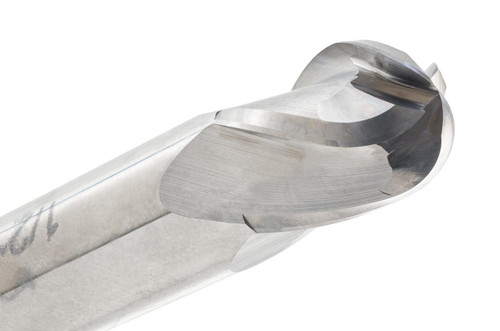

Compact radius work with two usable ends — the CGS Tool 422-1562 is a 5/32" diameter 2-flute ball end mill from the double-end 422 Series built for smaller contouring and profiling jobs.
The ball nose keeps curved surface work smooth at this size, and 2-flute geometry gives useful chip clearance. Uncoated carbide handles mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites.
Tool Specifications:
- Diameter: 5/32"
- Shank: 5/32"
- Length of Cut (LOC): 5/16"
- Overall Length (OAL): 2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Helix: 30°
- Design: Double End
- Series: CGS 422 Series
- Part No: 422-1562
Key Performance Features:
- 2-flute ball end design for contouring and radius work
- Double-end construction provides two usable cutting ends
- 30° helix supports smooth cutting and chip movement
- Solid carbide body provides rigidity and cutting accuracy
- Uncoated finish suited for general-purpose machining flexibility
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for small-radius milling, 3D profiling, finishing, and surface blending
