Product Overview

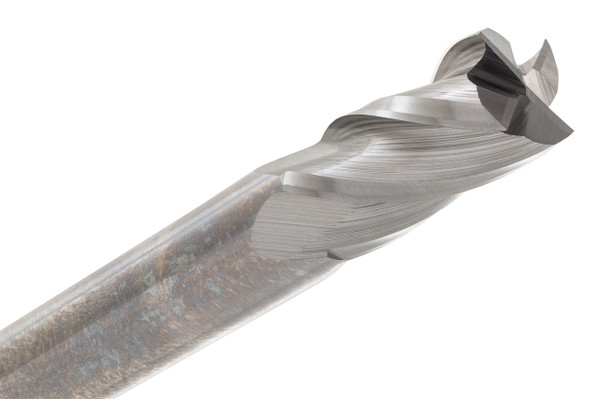

The CGS Tool 240-6250 is a 5/8" diameter 4-flute solid carbide square end mill built for general-purpose milling, a dependable option for slotting and side wall work in mid-size CNC applications.
With a 3/4" length of cut and 3" overall length, this 240 Series cutter gives controlled performance, and the uncoated carbide construction makes it practical for everyday shop conditions.
Tool Specifications:
- Diameter: 5/8"
- Shank: 5/8"
- Length of Cut (LOC): 3/4"
- Overall Length (OAL): 3"
- Flutes: 4 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS 240 Series
- Part No: 240-6250
Key Performance Features:
- General-purpose milling handled by a 4-flute square end design
- 5/8" diameter supports stronger stock removal
- 30° helix keeps chip movement smooth
- Suited to slotting, profiling, plunge, and side wall milling
- Single-end solid carbide construction
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
