Product Overview

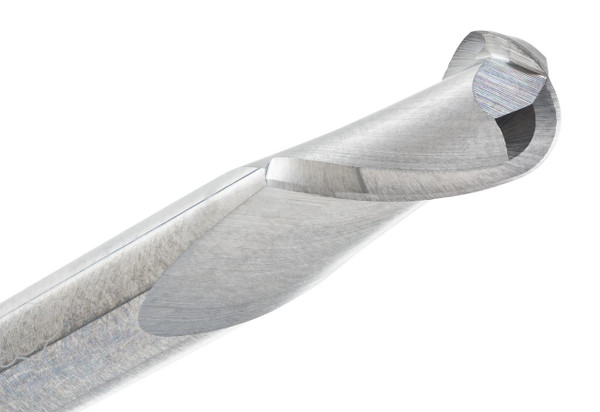

Larger radius milling with cutting life on both ends — the CGS Tool 422-6250 is a 5/8" diameter 2-flute ball end mill from the double-end 422 Series built for smooth curved surface control across finishing and blending work.
The ball nose handles 3D surfaces and radius cuts cleanly, and 2-flute geometry gives helpful chip clearance. Uncoated carbide handles mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites.
Tool Specifications:
- Diameter: 5/8"
- Shank: 5/8"
- Length of Cut (LOC): 3/4"
- Overall Length (OAL): 4"
- Flutes: 2 - Ball End
- Radius: .3125"
- Material: Solid Carbide
- Coating: Uncoated
- Helix: 30°
- Design: Double End
- Series: CGS 422 Series
- Part No: 422-6250
Key Performance Features:
- 2-flute ball end design for contouring, profiling, and radius work
- Double-end construction provides two usable cutting ends
- Ball nose profile supports smooth 3D surfaces and blended details
- 30° helix promotes smooth cutting and controlled chip flow
- Solid carbide body provides rigidity and dependable tool life
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for finishing passes, mold details, surface blending, and curved profile milling
