Product Overview

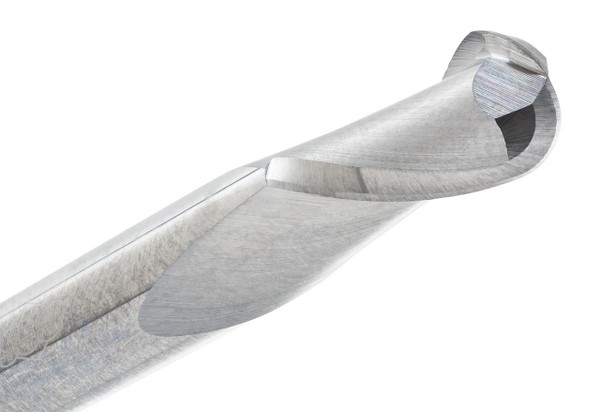

The CGS Tool 422-5000 is a 1/2" diameter 2-flute solid carbide ball end mill from the 422 Series, built with a double-end design that gives shops extra usable tool life on repeat cuts. It's made for profile milling, contour work, and rounded pocket shaping.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a .250" radius matched to its diameter for a smooth, rounded finish. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's a practical general-purpose choice for keeping at the machine.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 3"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .250"
- Series: CGS General Purpose (422 Series)
- Part No: 422-5000
Key Performance Features:
- 2-Flute ball end design for radius and contour milling
- Double-end body extends usable tool life
- .250" radius matched to diameter for smooth surfaces
- 30° helix with precision-ground cutting edges
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
