Product Overview

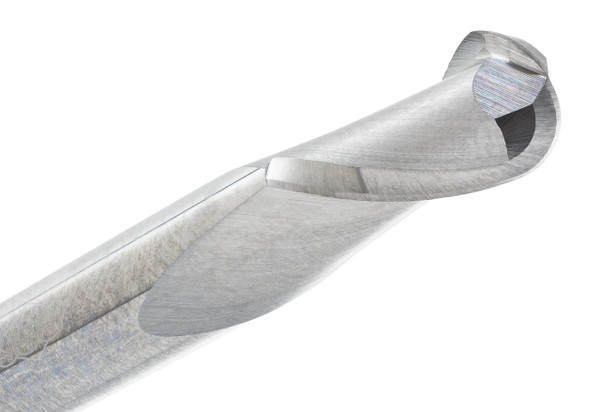

The CGS Tool 422-0625 is a 1/16" diameter 2-flute solid carbide ball end mill from the 422 Series, sized for fine contour work where a square end tool would leave too sharp of a finish. Its double-end build gives shops extra usable value on a cutter this small.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a .0312" radius matched precisely to its diameter. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's built for controlled detail work rather than heavy removal.
Tool Specifications:
- Diameter: 1/16"
- Shank: 1/8"
- Length of Cut (LOC): 1/8"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0312"
- Series: CGS General Purpose (422 Series)
- Part No: 422-0625
Key Performance Features:
- 2-Flute ball end design for small contour work
- Double-end body extends cutting value
- .0312" radius matched to diameter for fine rounded details
- 30° helix with precision-ground cutting edges
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
