Product Overview

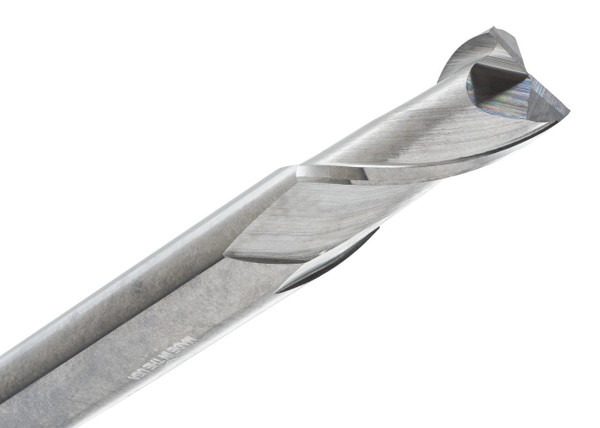

The CGS Tool 420-0625 is a 1/16" diameter 2-flute solid carbide square end mill with a double-end design, built for fine general-purpose work where small slots and light profiles need controlled cutting rather than raw stock removal. This is the of tool that shows up on jobs with compact features and not much room for error.
At 1/8" length of cut and 1-1/2" overall length, the 420-0625 handles small CNC features cleanly, and the uncoated carbide body keeps it a dependable everyday choice. It's suited for mixed general-purpose work across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 1/16"
- Shank: 1/8"
- Length of Cut (LOC): 1/8"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS 420 Series
- Part No: 420-0625
Key Performance Features:
- Fine milling work handled by a 2-flute square end profile
- Double-end body gives use from both cutting sides
- 1/16" diameter fits compact machining features
- 30° helix keeps chip flow smooth during the cut
- Good match for tiny slots, plunge cuts, and flat-bottom detail
- Works across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
