Product Overview

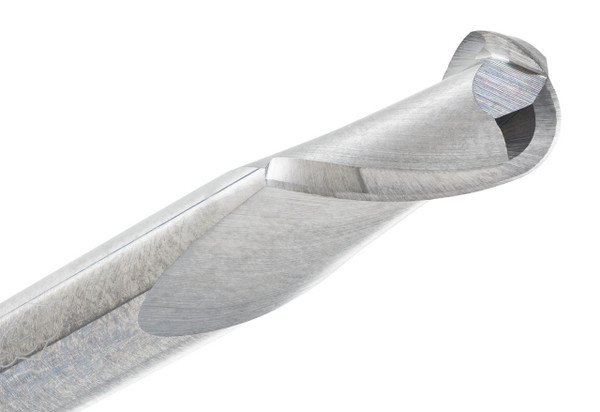

The CGS Tool 422-0781 is basically a 5/64" diameter 2-flute solid carbide ball end mill with a double-end style, made for that fine contour milling stuff, where small rounded details and delicate finishing passes need a compact , controlled tool.
Its .039" radius gives a tidy ball end shape for small curved features and the uncoated solid carbide build makes this 422 Series cutter a practical pick for removing material from both sides across mild steels, stainless , cast iron, titanium, non-ferrous metals, plastics and composites.
Tool Specifications:
- Diameter: 5/64"
- Shank: 1/8"
- Length of Cut (LOC): 1/8"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .039"
- Series: CGS 422 Series
- Part No: 422-0781
Key Performance Features:
- Fine contour milling handled by a 2-flute ball end design
- Double-end construction gives use from both cutting ends
- .039" radius supports small rounded feature work
- Compact LOC allows controlled cutting in tight details
- Suited to finishing, blending, and compact pocket machining
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
