Product Overview

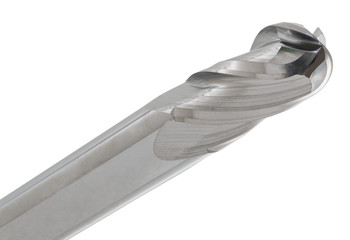

The CGS Tool 242-1250 is a 1/8" diameter 4-flute solid carbide ball end mill built specifically for small profile and contour milling where the pocket is too tight for a full-size tool. It belongs to the 242 Series, CGS Tool's compact ball nose line.
What sets this tool apart is the .0625" radius, sized for compact blending and light detail work, running on a 30° helix that keeps the cut controlled at this scale. Left uncoated, it holds up through mild steel, stainless, cast iron, titanium, non-ferrous material, plastics, and composites.
Tool Specifications:
- Diameter: 1/8"
- Shank: 1/8"
- Length of Cut (LOC): 3/16"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0625"
- Series: CGS 242 Series
- Part No: 242-1250
Key Performance Features:
- 4-flute ball end design for small contour milling
- .0625" radius supports compact rounded features
- 30° helix helps maintain smooth cutting control
- Handles finishing, blending, and small pocket work
- Single-end solid carbide build
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
