Product Overview

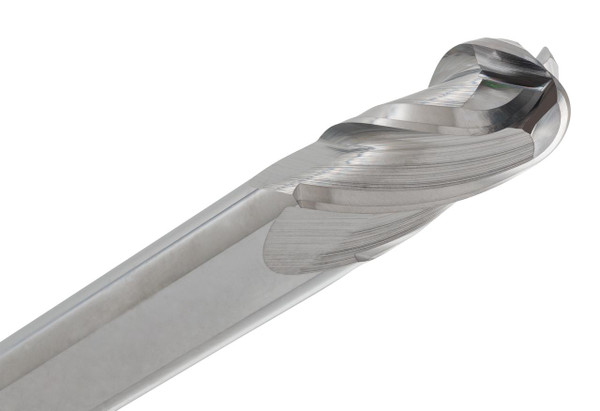

The CGS Tool 242-3125 is a 5/16" diameter 4-flute solid carbide ball end mill built for profile and contour work, with a .1562" radius that gives a smooth rounded cutting form for curved pockets and blending work.
Single-end construction and a 30° helix make this 242 Series cutter dependable for general-purpose ball-end performance, and the uncoated carbide body works well across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 5/16"
- Shank: 5/16"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .1562"
- Series: CGS 242 Series
- Part No: 242-3125
Key Performance Features:
- Profile and contour milling handled by a 4-flute ball end design
- .1562" radius supports smooth rounded surface work
- 30° helix gives controlled, general-purpose cutting
- Suited to finishing, blending, and curved pocket machining
- Single-end solid carbide construction
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
