Product Overview

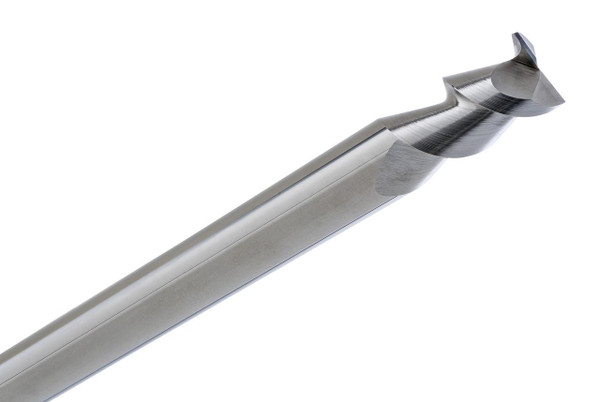

The CGS Tool 2518, has a 3/8” diameter, 2-flute solid carbide square end mill. It is made for maximum material removal and decent surface precision, especially in aluminum , non ferrous metals and plastics. It comes from the ferocious series, so it’s built for machinists who want top tier results at extreme feed rates, no question.
Made from premium sub-micro grain carbide, the 2518 includes a 55° high helix, for better chip evacuation, less cutting force, and really clean surface finishing. The polished cutting edges and free-cutting geometry help reduce built-up edge, while it still holds up well tool life wise, even with high-speed CNC work.
Tool Specifications:
- Diameter: 3/8”
- Shank: 3/8”
- Length of Cut (LOC): 5/8”
- Overall Length (OAL): 2”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: Bright (Uncoated)
- Series: CGS Ferocious
- Part No: 2518
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating option available for extended life and cleaner cuts.
