Product Overview

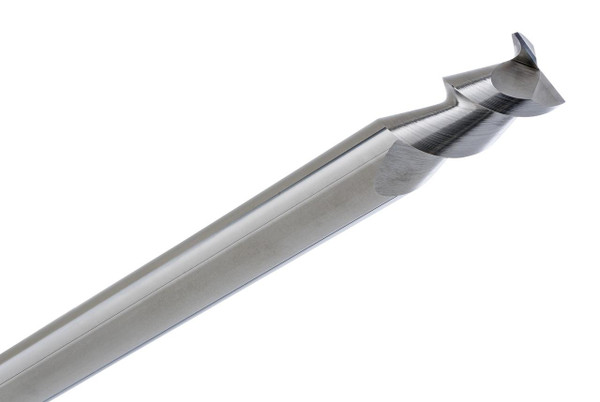

The CGS Tool 2524 has a 3/8” diameter 2-flute solid carbide square end mill. It is made for high-speed machining of aluminum, non-ferrous metals, plastics and composite materials. It’s part of the famous 2500 Series Ferocious, and the whole idea is to keep delivering exceptional material removal rates, aggressive feed speeds and overall strong machining results for tough CNC work.
Made from premium solid carbide, the 2524 uses CGS Tool’s original 55° high helix geometry, which helps with chip evacuation, lowers cutting forces, and gives a smoother kind of cutting action. The free-cutting design lets machinists run higher chip loads plus feed rates per tooth compared to conventional end mills, so productivity climbs while the surface finish stays good. And the uncoated finish works like a simple advantage in aluminum and other non-ferrous materials, because it helps minimize buildup, keeps things clean, and supports efficient cuts.
Tool Specifications:
- Diameter: 3/8”
- Shank: 3/8”
- Length of Cut (LOC): 5/8”
- Overall Length (OAL): 4”
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Helix Angle: 55°
- Series: CGS 2500 Series Ferocious
- Part No: 2524
Key Performance Features:
- Original 55° high helix design optimized for aluminum and non-ferrous materials
- High chip load capability for maximum productivity and faster cycle times
- Excellent chip evacuation for improved cutting efficiency
- Uncoated cutting edges help prevent built-up edge in aluminum applications
- Ideal for roughing, slotting, profiling, and contouring operations
- Delivers superior performance in plastics, composites, copper, and brass
- Engineered for extreme feed rates and high-speed CNC machining
