Product Overview

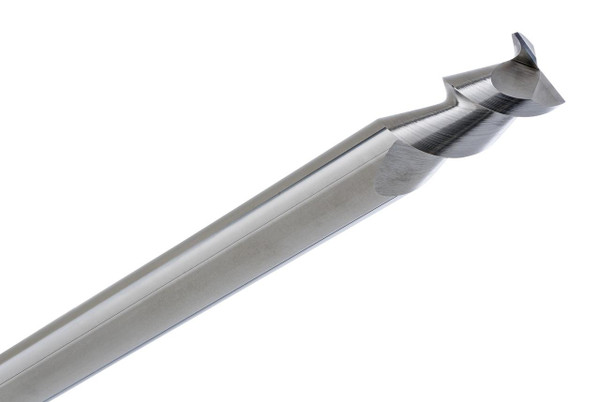

The CGS Tool 2536 has a 1/2” diameter, 2-flute solid carbide square end mill, meant for high-speed milling of aluminum copper brass plastics composites and other non ferrous materials. It’s part of the industry-proven 2500 Series Ferocious, so it’s engineered to deliver pretty exceptional chip evacuation aggressive feed rates and a strong material removal performance, especially in tough CNC machining environments.
Built from premium solid carbide, the 2536 includes CGS Tool’s original 55° high helix geometry. That geometry gives a sort of smooth cutting action, lowers cutting pressures, and helps with efficient chip clearance. With this design the machinist can typically run higher spindle speeds and feed rates, while still keeping excellent surface finishes and machining stability. The uncoated cutting edges are tuned for aluminum plus non ferrous uses, and they help minimize built-up edges and support clean accurate cuts.
Tool Specifications:
- Diameter: 1/2”
- Shank: 1/2”
- Length of Cut (LOC): 5/8”
- Overall Length (OAL): 4”
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Helix Angle: 55°
- Series: CGS 2500 Series Ferocious
- Part No: 2536
Key Performance Features:
- Original 55° high helix design for maximum performance in aluminum and non-ferrous materials
- High chip load capability for faster cycle times and increased productivity
- Exceptional chip evacuation for improved machining efficiency
- Uncoated cutting edges help reduce material buildup in aluminum applications
- Ideal for roughing, slotting, profiling, and contouring operations
- Produces excellent surface finishes in copper, brass, plastics, and composites
- Engineered for high-speed CNC machining and aggressive feed rates
- Delivers reliable performance and extended tool life in production environments
