Product Overview

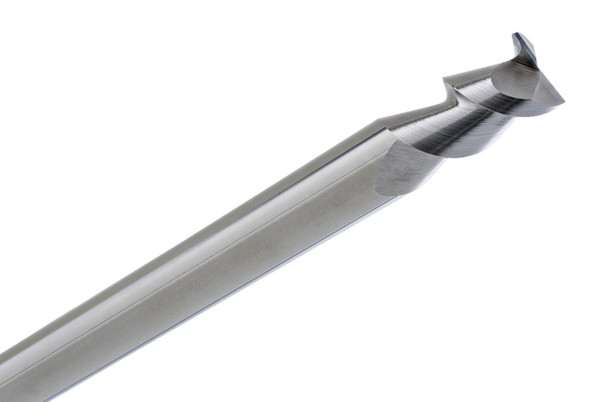

The CGS Tool 2548 has a 5/8” diameter 2-flute solid carbide square end mill meant for maximum performance in aluminum copper brass plastics composites and other non-ferrous materials. It’s part of the industry-renowned 2500 Series Ferocious, this high-performance tool is engineered to bring exceptional material removal rates, aggressive feed speeds, and smoother machining efficiency, especially in high-speed CNC applications.
Made from premium solid carbide, the 2548 includes CGS Tool’s original 55° high helix geometry, and that gives outstanding chip evacuation, lower cutting forces, and a more stable machining feel. The free-cutting design helps machinists reach some of the highest chip loads and feed rates per tooth in the industry, which boosts productivity while still keeping really good surface finishes. The uncoated cutting edges are optimized for aluminum and other non-ferrous materials, so it helps prevent material buildup and keeps cuts clean and accurate.
Tool Specifications:
- Diameter: 5/8”
- Shank: 5/8”
- Length of Cut (LOC): 3/4”
- Overall Length (OAL): 3”
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Helix Angle: 55°
- Series: CGS 2500 Series Ferocious
- Part No: 2548
Key Performance Features:
- Original 55° high helix design optimized for aluminum and non-ferrous machining
- High chip load capability for faster material removal and increased productivity
- Exceptional chip evacuation for improved cutting efficiency
- Uncoated cutting edges help minimize built-up edge in aluminum applications
- Ideal for roughing, slotting, profiling, and contouring operations
- Produces smooth surface finishes in copper, brass, plastics, and composites
- Designed for high-speed CNC machining and aggressive feed rates
- Delivers consistent cutting performance and extended tool life.
