Product Overview

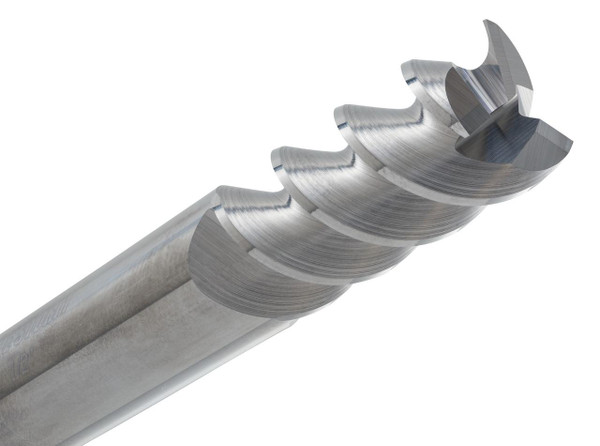

The CGS Tool 3003 is a 3/16" diameter 3-flute solid carbide square end mill from the Storm 3000 Series, built for production milling that pushes chip load and cutting pressure beyond what a standard cutter can manage. The compact diameter combined with Storm geometry makes it a strong fit for high-performance milling in tight spaces.
A 60° high helix, heavy core, and eccentric relief design work together to keep the tool rugged during demanding CNC work, and with a 5/8" length of cut and 2-1/2" overall length, the 3003 is a strong option for compact, high-performance applications in steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials.
Tool Specifications:
- Diameter: 3/16"
- Shank: 1/4"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2-1/2"
- Flutes: 3 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS Storm 3000 Series
- Part No: 3003
Key Performance Features:
- Tough production milling handled by a 3-flute square end design
- 60° high helix supports fast chip evacuation
- Heavy core manages high chip loads
- Eccentric relief adds tool strength
- Strong fit for aggressive square-end milling applications
- Ideal for steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials
