Product Overview

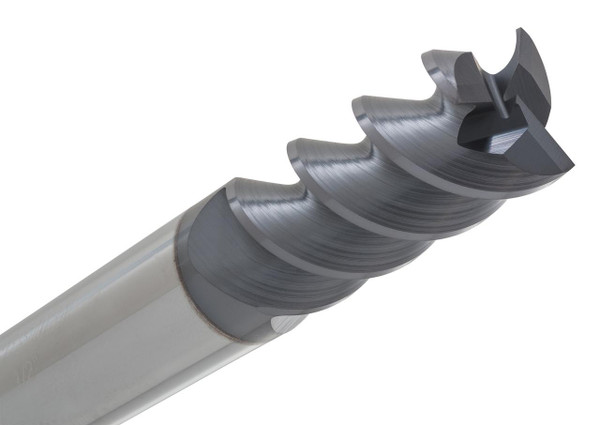

Tough conditions at a smaller diameter still call for the same rugged geometry, and the 3003-ALTiN provides it at 3/16". This 3-flute square end mill comes from the Storm 3000 Series, built for applications where a small cutter still needs to handle stronger chip loads and demanding production conditions.
The Storm design uses a 60° high helix, heavy core, and eccentric relief to keep the tool stable under pressure. Finished with ALTiN coating, the 3003-ALTiN is a strong choice for steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials.
Tool Specifications:
- Diameter: 3/16"
- Shank: 1/4"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2-1/2"
- Flutes: 3 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: No
- Series: Storm 3000 Series
- Part No: 3003-ALTiN
Key Performance Features:
- 3-flute square end built for tough production milling
- ALTiN coating improves heat and wear resistance
- 60° high helix supports fast chip evacuation
- Heavy core helps handle high chip loads
- Eccentric relief design adds rugged edge strength
- Rated for steels, stainless, cast iron, titanium, alloys, and Inconel
