Product Overview

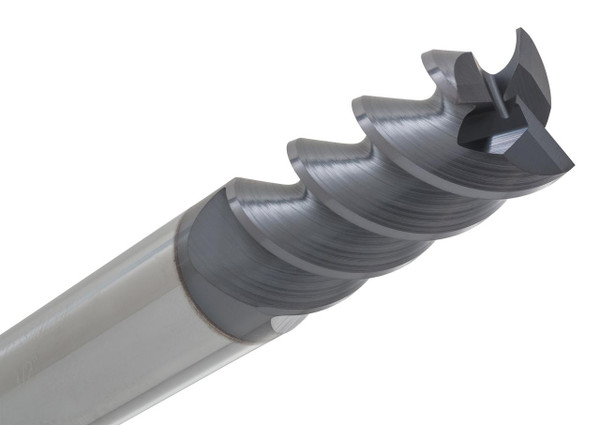

Tough production work at 3/8" diameter still needs the same rugged approach, and the 3012-ALTiN delivers it. This 3-flute square end mill comes from the Storm 3000 Series, built to stay strong through higher chip loads, aggressive cutting, and demanding materials.
The Storm design uses a 60° high helix, heavy core, and eccentric relief to keep the tool rugged under pressure. Finished with ALTiN coating, the 3012-ALTiN is a strong option for steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials.
Tool Specifications:
- Diameter: 3/8"
- Shank: 3/8"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 2-1/2"
- Flutes: 3 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: No
- Series: Storm 3000 Series
- Part No: 3012-ALTiN
Key Performance Features:
- 3-flute square end built for tough production milling
- ALTiN coating improves heat and wear resistance
- 60° high helix supports fast chip evacuation
- Heavy core helps handle higher chip loads
- Eccentric relief design adds rugged edge strength
- Rated for steels, stainless, cast iron, titanium, alloys, and Inconel
