Product Overview

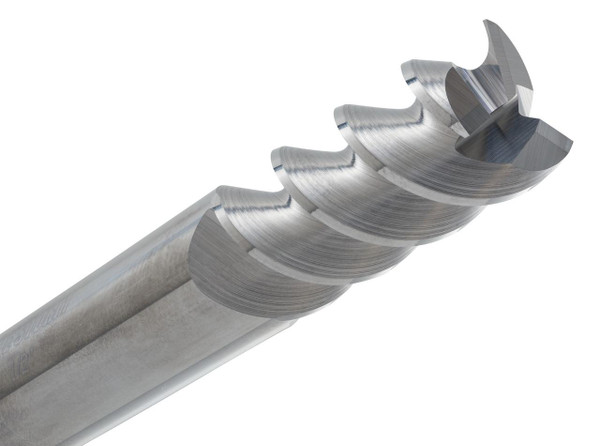

The CGS Tool 3012 is a 3/8" diameter 3-flute solid carbide square end mill from the Storm 3000 Series, sized for tough production work where the tool needs to cut hard and stay stable under higher chip loads. It's built for shops that need more strength than a standard cutter offers.
Its 60° high helix, heavy core, and eccentric relief design are engineered specifically for the rugged cutting feel the Storm Series is known for. Rated for steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials, it holds up when rougher cutting conditions demand more from the tool.
Tool Specifications:
- Diameter: 3/8"
- Shank: 3/8"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 2-1/2"
- Flutes: 3 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: Storm 3000 Series
- Part No: 3012
Key Performance Features:
- 3-Flute square end design for tough production milling
- 60° high helix matched to heavy core for fast chip movement
- Eccentric relief design adds toughness
- Uncoated construction for demanding CNC applications
- Effective across steels, stainless, cast iron, and titanium
- Also suited to alloys, Inconel, and select non-ferrous materials
