Product Overview

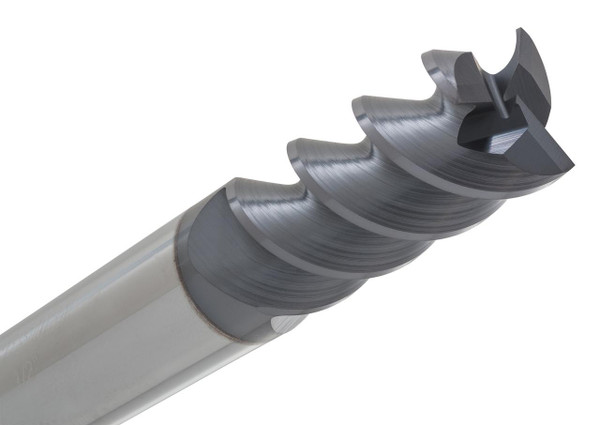

The CGS Tool 3006-ALTiN is a 1/4" diameter 3-flute solid carbide square end mill from the Storm 3000 Series, built for tough production applications where the cutter needs to handle high chip loads and stronger feeds. It's built for harder working conditions.
Its heavy core and eccentric relief design give the tool a rugged feel in demanding cuts, and the ALTiN coating is matched to add heat resistance on top of that toughness. Rated for steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials, it holds up where tool toughness matters most.
Tool Specifications:
- Diameter: 1/4"
- Shank: 1/4"
- Length of Cut (LOC): 3/4"
- Overall Length (OAL): 2-1/2"
- Flutes: 3 - Square End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: No
- Series: Storm 3000 Series
- Part No: 3006-ALTiN
Key Performance Features:
- 3-Flute square end design for tough applications
- ALTiN coating improves heat and wear resistance
- Heavy core matched to higher chip-load machining
- Eccentric relief design adds toughness
- Effective across steels, stainless, cast iron, and titanium
- Also suited to alloys, Inconel, and select non-ferrous materials
