Product Overview

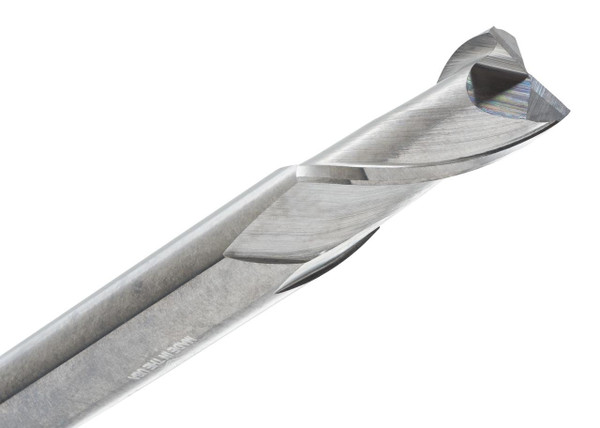

Everyday milling doesn't need a specialty tool, and the 420-2500 fills that everyday role well. This 1/4" diameter 2-flute square end mill comes with a double-end design, so shops get two usable cutting edges from a single tool before it needs replacing.
That extra tool life matters most on repeat production jobs where the same cutter runs the same operation over and over. With a 30° helix and uncoated carbide body, the 420-2500 handles clean slots, accurate profiles, light plunge cuts, and flat-bottom features across mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites without any special setup considerations.
Tool Specifications:
- Diameter: 1/4"
- Shank: 1/4"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 2-1/2"
- Flutes: 2 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: 420 Series
- Part No: 420-2500
Key Performance Features:
- 2-flute square end suited to general milling work
- Double-end design extends usable tool life
- 30° helix supports smooth, steady chip movement
- Handles slotting, profiling, plunging, and side wall milling
- Uncoated carbide body performs well in standard conditions
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
