Product Overview

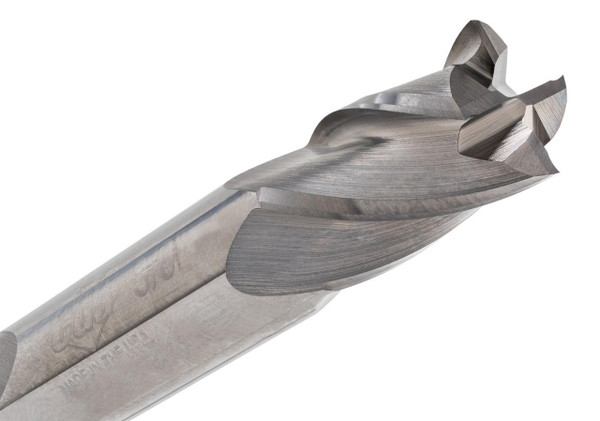

The CGS Tool 440-1875 is a 3/16" diameter 4-flute solid carbide square end mill with a double-end design, built for compact general-purpose milling where clean square-end cutting and extra usable tool value matter.
With a 3/8" length of cut and 2" overall length, this 440 Series cutter gives steady performance in slots, profiles, plunge cuts, and side wall applications, and the uncoated carbide body makes it practical for everyday CNC milling.
Tool Specifications:
- Diameter: 3/16"
- Shank: 3/16"
- Length of Cut (LOC): 3/8"
- Overall Length (OAL): 2"
- Flutes: 4 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS 440 Series
- Part No: 440-1875]
Key Performance Features:
- Compact milling work handled by a 4-flute square end design
- Double-end construction gives use from both cutting ends
- 3/16" diameter supports small machining features
- 30° helix helps maintain smooth chip movement
- Suited to slots, profiles, plunge cuts, and flat-bottom work
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
