Product Overview

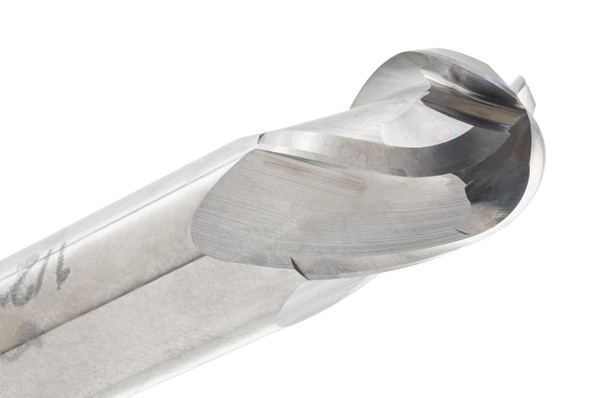

Small rounded details need a compact radius with tool life to match, and the 442-1875 offers both at 3/16" diameter with a .0938" radius. This 4-flute ball end mill uses a double-end design, made for compact profile and contour milling where small rounded details, pocket blending, and finishing passes need controlled cutting.
Its .0938" radius gives a clean ball-end form for curved features and smooth surface work. Built with a 30° helix and uncoated carbide construction, this 442 Series cutter gives dependable general-purpose performance with usable cutting value from both ends.
Tool Specifications:
- Diameter: 3/16"
- Shank: 3/16"
- Length of Cut (LOC): 3/8"
- Overall Length (OAL): 2"
- Flutes: 4 Flute
- End Style: Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0938"
- Series: 442 Series
- Part No: 442-1875
Key Performance Features:
- 4-flute ball end built for compact contour milling
- Double-end design gives use from both cutting ends
- .0938" radius supports smooth, rounded feature work
- 30° helix helps maintain controlled cutting action
- Handles finishing, blending, and small pocket machining
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
