Product Overview

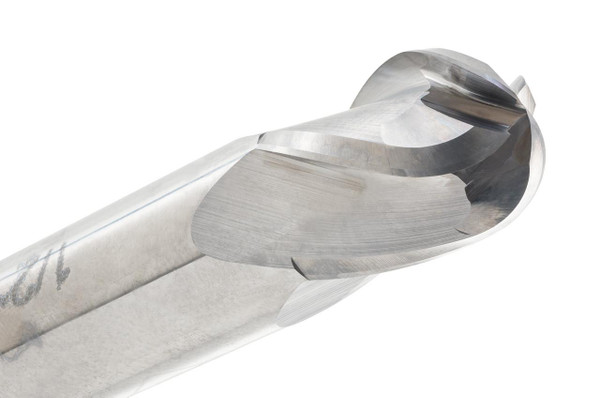

The CGS Tool 442-5000 is a 1/2” diameter 4-flute solid carbide ball end mill from the 442 Series, built as a double-ended tool so you effectively get two cutting ends out of one piece of carbide. For shops watching tooling costs, that alone makes it worth a look before reaching for a single-end equivalent.
It carries the same 30° helix and precision CNC manufacturing standard as the rest of CGS Tool's General Purpose range, and the .250” radius ball profile handles contour and 3D surface work cleanly. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's built to be the reliable, no-drama option in a busy tool crib.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 3"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .250"
- Series: CGS General Purpose (442 Series)
- Part No: 442-5000
Key Performance Features:
- 4-Flute ball end design, ground as a double-end tool
- Two usable cutting ends extend value per tool
- 30° helix with precision CNC manufacturing
- Consistent, dependable stock removal for contour work
- Effective on mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
