Product Overview

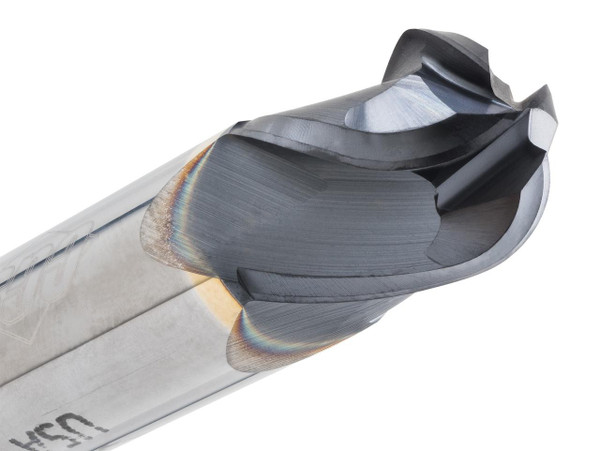

The CGS Tool 442-5000-ALTiN is a 1/2" diameter 4-flute solid carbide ball end mill with a double-end design, sized for broader profile work rather than fine detail. Its .250" radius produces a clean rounded form for curved pockets and surface blending across larger features.
The ALTiN coating handles heat and wear resistance under tougher cutting conditions, and with a 5/8" length of cut and 3" overall length, this 442 Series cutter gives practical value from both ends. It performs well across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 3"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .250"
- Series: CGS 442 Series
- Part No: 442-5000-ALTiN
Key Performance Features:
- Profile and contour milling suited to a 4-flute ball end design
- Double-end construction adds a second usable cutting edge
- .250" radius supports smooth rounded surface work
- ALTiN coating helps resist heat and wear
- Strong fit for finishing, blending, and curved pocket machining
- Runs well in mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
