Product Overview

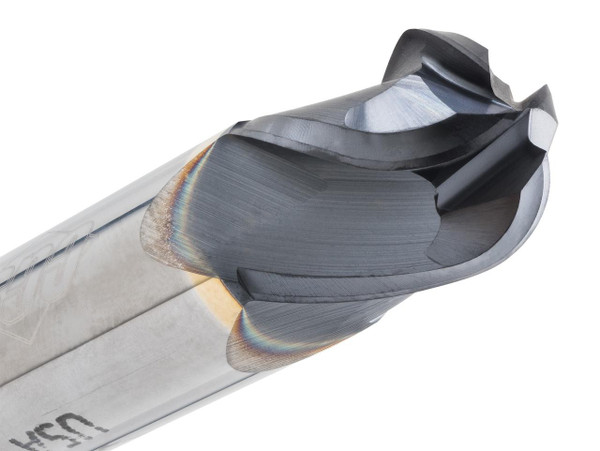

The CGS Tool 442-6250-ALTiN is a 5/8" diameter 4-flute solid carbide ball end mill with a double-end design, sized for larger profile work where smooth rounded surfaces and broader pocket blending are the priority.
The ALTiN coating helps manage heat and wear under tougher cutting conditions, and with a .3125" radius and double-end construction, this 442 Series cutter gives practical cutting value from both ends.
Tool Specifications:
- Diameter: 5/8"
- Shank: 5/8"
- Length of Cut (LOC): 3/4"
- Overall Length (OAL): 4"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .3125"
- Series: CGS 442 Series
- Part No: 442-6250-ALTiN
Key Performance Features:
- Larger contour milling handled by a 4-flute ball end design
- Double-end construction gives use from both cutting ends
- .3125" radius supports broad rounded surface work
- ALTiN coating adds heat and wear resistance
- Suited to finishing, blending, and curved pocket machining
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
