Product Overview

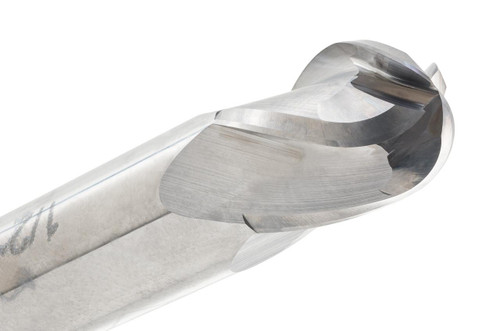

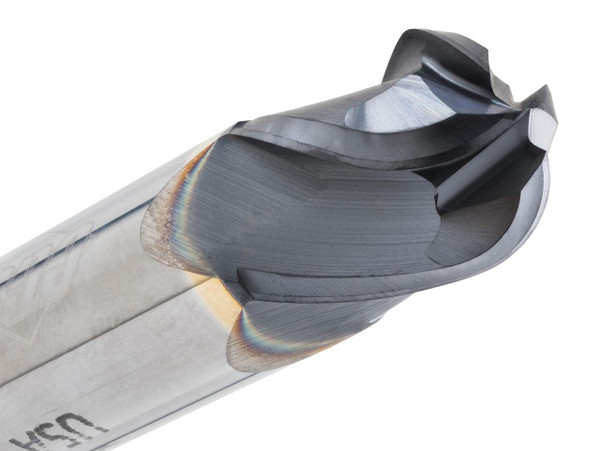

Small rounded details need a compact kind of radius that still has staying power, and the 442-1562-ALTiN seems to nail that at 5/32" diameter, with a .0781" radius too. It’s a 4-flute ball end mill that’s built with a double-end design, sort of made for compact profile and contour milling where those small rounded forms, pocket blending, and finishing passes need a controlled cut, not just “good enough”.
The ALTiN coating helps improve heat and wear resistance during tougher machining situations. With a 5/16" length of cut and 2" overall length, this 442 Series cutter gives useful cutting value from both ends.
Tool Specifications:
- Diameter: 5/32"
- Shank: 3/16"
- Length of Cut (LOC): 5/16"
- Overall Length (OAL): 2"
- Flutes: 4 Flute
- End Style: Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .0781"
- Series: 442 Series
- Part No: 442-1562-ALTiN
Key Performance Features:
- 4-flute ball end built for compact contour milling
- Double-end design gives use from both cutting ends
- .0781" radius supports small, rounded feature work
- ALTiN coating improves heat and wear resistance
- Handles finishing, blending, and compact pocket machining
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
