Product Overview

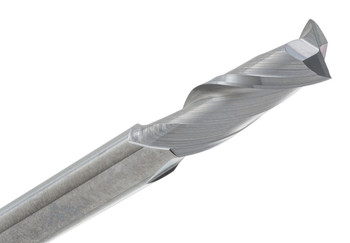

The CGS Tool 120-1562-ALTiN is a 5/32" diameter 2-flute solid carbide square end mill from the 120 Series, sized for smaller general-purpose milling where chip room and control both count. It's a clean, practical cutter for slots, profiles, and light side wall milling.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and an ALTiN coating matched to add wear protection and help the tool perform confidently in hotter cuts. Rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's dependable in everyday production.
Tool Specifications:
- Diameter: 5/32"
- Shank: 3/16"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 2"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: No
- Series: CGS General Purpose (120 Series)
- Part No: 120-1562-ALTiN
Key Performance Features:
- 2-Flute square end design for smaller milling work
- ALTiN coating matched to diameter for wear resistance
- 30° helix with precision-ground cutting edges
- Single-end solid carbide construction
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
