Product Overview

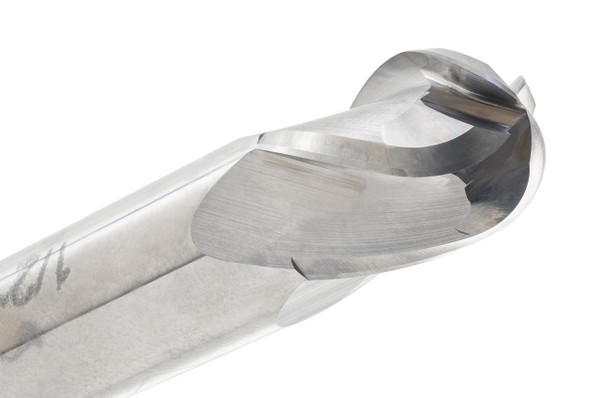

The CGS Tool 442-2500 is a 1/4" diameter 4-flute solid carbide ball end mill with a double-end design, built for profile and contour work where smooth rounded surfaces and pocket blending need controlled, repeatable cutting.
Its .125" radius gives a clean ball-end form for compact curved surfaces and general finishing work, and with a 30° helix and uncoated carbide body, this 442 Series cutter gives practical value from both ends.
Tool Specifications:
- Diameter: 1/4"
- Shank: 1/4"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 2-1/2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .125"
- Series: CGS 442 Series
- Part No: 442-2500
Key Performance Features:
- Contour and profile milling handled by a 4-flute ball end design
- Double-end construction gives use from both cutting ends
- .125" radius supports smooth rounded surface work
- 30° helix gives controlled, general-purpose cutting
- Suited to finishing, blending, and curved pocket machining
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
