Product Overview

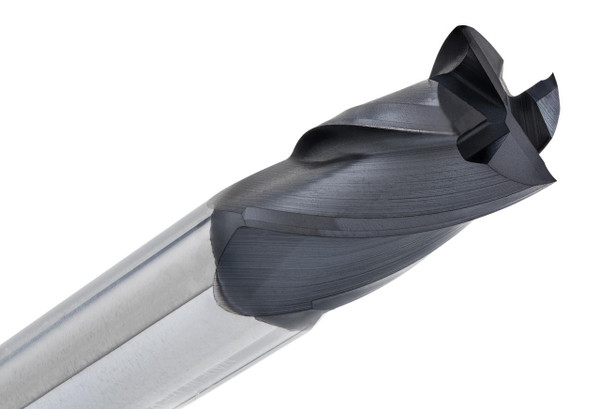

Two working ends at 7/16" diameter with heat resistance built in — the CGS Tool 440-4375-ALTiN is a 4-flute square end mill from the 440 Series built for slotting, profiling, and side-wall milling.
ALTiN coating protects the edge during heat-heavy conditions, and the square end profile keeps things clean. Solid carbide construction handles mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites.
Tool Specifications:
- Diameter: 7/16"
- Shank: 7/16"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 3"
- Flutes: 4 - Square End
- Material: Solid Carbide
- Coating: ALTiN
- Helix: 30°
- Design: Double End
- Series: CGS 440 Series
- Part No: 440-4375-ALTiN
Key Performance Features:
- 4-flute square end design for stable milling and clean stock removal
- Double-end construction provides two usable cutting ends
- ALTiN coating helps improve heat resistance and cutting edge life
- 30° helix supports smooth cutting and controlled chip evacuation
- Solid carbide body provides rigidity and wear resistance
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for slotting, profiling, pocketing, plunge milling, and side-wall milling
