Product Overview

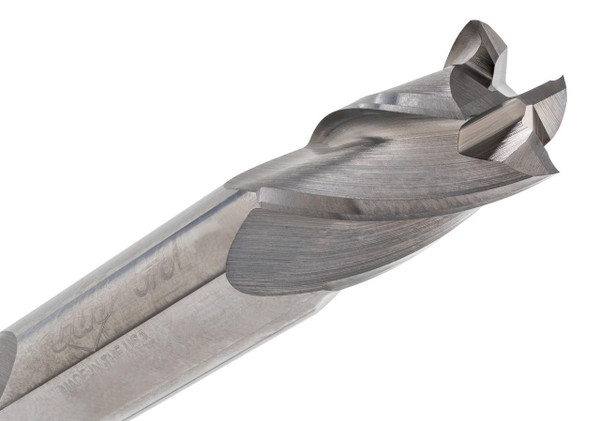

General-purpose milling with extra tool life built in, that's the value the 440-4375 offers at 7/16" diameter. This 4-flute square end mill comes with a double-end design, giving shops clean square-end cutting from both sides of the tool before it needs replacing.
With a 30° helix and uncoated carbide body, this cutter performs steadily across common milling applications without any special setup. Slotting, profiling, plunge work, side wall milling, and flat-bottom cutting are all a good fit across mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 7/16"
- Shank: 7/16"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 3"
- Flutes: 4 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: 440 Series
- Part No: 440-4375
Key Performance Features:
- 4-flute square end suited to general-purpose milling
- Double-end design provides use from both cutting ends
- 30° helix supports smooth, controlled chip flow
- Handles slotting, profiling, plunging, and side wall milling
- Uncoated carbide body performs well in standard conditions
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
