Product Overview

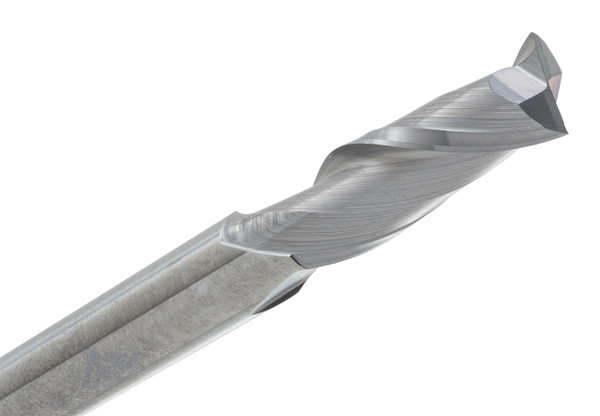

The CGS Tool 120-4375 is a 7/16" diameter 2-flute solid carbide square end mill built for general-purpose milling, useful for slotting, profiling, and clean flat-bottom applications in compact-to-mid-size CNC work.
With a 1" length of cut and 2-3/4" overall length, this 120 Series cutter gives useful reach, and the uncoated carbide construction makes it suitable for standard shop conditions.
Tool Specifications:
- Diameter: 7/16"
- Shank: 7/16"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 2-3/4"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS 120 Series
- Part No: 120-4375
Key Performance Features:
- General-purpose milling handled by a 2-flute square end design
- 7/16" diameter supports controlled stock removal
- 30° helix keeps chip movement smooth
- Suited to slotting, profiling, plunge, and side wall milling
- Single-end solid carbide construction
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
