Product Overview

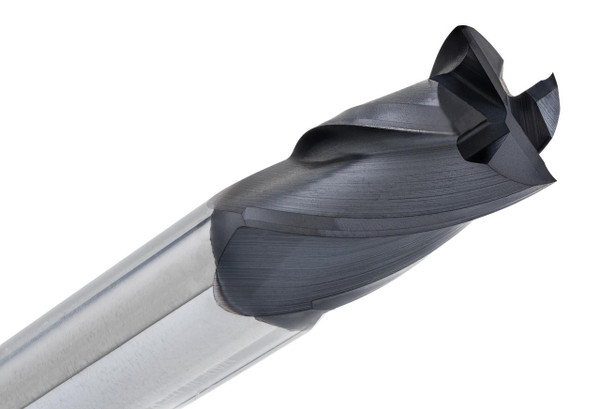

Strong cutting performance with extra tool life, that's what the 440-6250-ALTiN offers at 5/8" diameter. This 4-flute square end mill uses a double-end design, giving shops clean square-end results from both sides of the tool.
ALTiN coating gives this cutter better resistance against heat and wear, useful in tougher or longer-running jobs. With a 30° helix and solid carbide construction, the 440-6250-ALTiN is a practical option for slotting, profiling, plunge cutting, and side wall milling across a wide range of materials.
Tool Specifications:
- Diameter: 5/8"
- Shank: 5/8"
- Length of Cut (LOC): 3/4"
- Overall Length (OAL): 4"
- Flutes: 4 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: No
- Series: 440 Series
- Part No: 440-6250-ALTiN
Key Performance Features:
- 4-flute square end suited to general-purpose milling
- Double-end design gives use from both cutting ends
- ALTiN coating improves heat and wear resistance
- 30° helix supports smooth, controlled chip flow
- Handles slotting, profiling, plunging, and side wall milling
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
