Product Overview

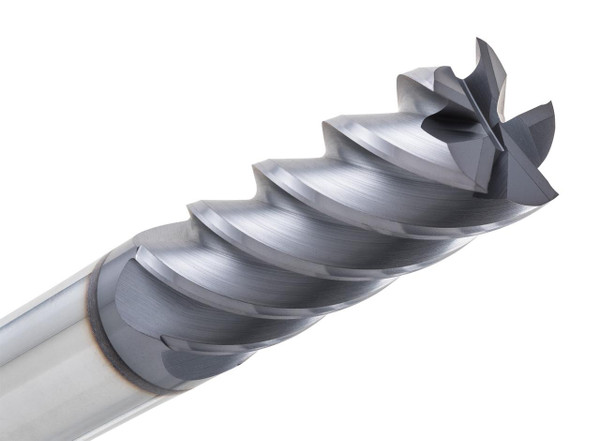

Made for high-performance finish milling, it has a 5-flute square end mill that gives a smooth cutting action, better surface finishes, and solid stability while doing precision machining jobs, y’know. The ALTiN-coated solid carbide build helps with heat resistance and longer tool life also. Then the 45° high helix geometry helps chip evacuation, so you get more consistent cutting performance when running higher feed rates.
Tool Specifications:
- Diameter: 11/32"
- Shank: 3/8"
- Length of Cut: 1/2"
- Overall Length: 2"
- Flutes: 5
- Style: Square End
- Coating: ALTiN
- Material: Solid Carbide
- Helix Angle: 45°
Key Performance Features:
- 5-flute design delivers smooth cutting action and superior surface finishes
- ALTiN coating provides excellent heat resistance and extends tool life in high-speed machining applications
- Improves wear resistance for consistent performance in demanding milling environments
- 45° high helix geometry enhances chip evacuation and reduces heat buildup
- Supports higher feed rates for increased machining productivity and efficiency
- Short overall length and 3/8" shank provide exceptional rigidity and machining stability
- Solid carbide construction ensures maximum strength, durability, and precision in finish milling operations
