Product Overview

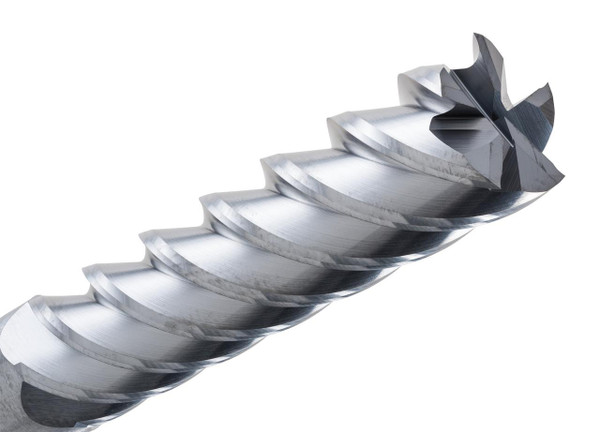

Designed for high-performance finish milling, this 5-flute square end mill delivers smooth cutting action, superior surface finishes, and reliable stability during precision machining applications. The TiCN-coated solid carbide construction provides increased wear resistance and extended tool life, while the 45° high helix design improves chip evacuation and supports consistent cutting performance at higher feed rates.
Tool Specifications:
- Diameter: 11/32"
- Shank: 3/8"
- Length of Cut: 1/2"
- Overall Length: 2"
- Flutes: 5
- Style: Square End
- Coating: TiCN
- Material: Solid Carbide
- Helix Angle: 45°
Key Performance Features:
- 5-flute design delivers smooth cutting action and superior surface finishes
- ALTiN coating provides excellent heat resistance and extends tool life in high-speed machining applications.
- Improves wear resistance for consistent performance in demanding milling environments.
- 45° high helix geometry enhances chip evacuation and reduces heat buildup
- Supports higher feed rates for increased machining productivity and efficiency.
- Short overall length and 3/8" shank provide exceptional rigidity and machining stability.
- Solid carbide construction ensures maximum strength, durability, and precision in finish milling operations.
