Product Overview

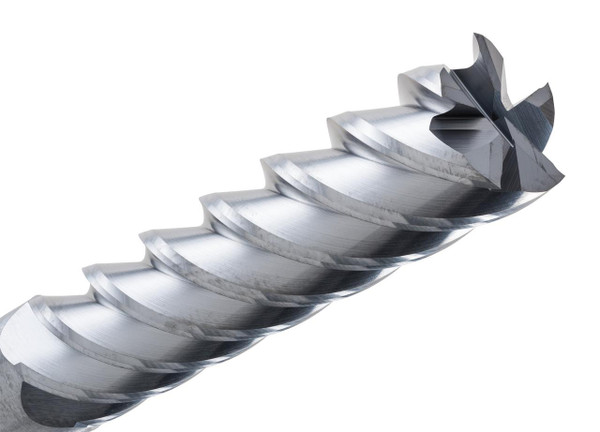

The 45029-TiCN 5-flute square end mill is engineered for high-performance finish milling and precision machining, it’s aimed at getting a really clean surface finish while still handling extreme feed rates during finishing work. It sits in the 45000 Series Super Finisher lineup, so you get that advanced cutting geometry combined with premium solid carbide construction, which should mean better accuracy, higher productivity, and surface quality, all at once.
The TiCN coating (Titanium Carbonitride) delivers more hardness, better wear resistance, and reduced friction, and that in turn helps stretch the tool life when machining gets demanding. Also, the 45° high-helix geometry helps with chip removal; it can reduce chatter or vibration , and it supports smooth, steady cutting across a broad range of materials.
Tool Specifications:
- Diameter: 15/32"
- Shank Diameter: 1/2"
- Length of Cut: 5/8"
- Overall Length: 2-1/2"
- Flutes: 5
- Style: Square End
- Coating: TiCN
- Material: Solid Carbide
- Helix Angle: 45°
- Configuration: Single End
- Series: 45000 Series Super Finisher
- Part Number: 45029-TiCN
Key Performance Features:
- 5-flute square end design gives a smoother finish on final passes. Solid carbide construction helps with strength, accuracy, and tool life.
- TiCN coating adds wear resistance and helps the cutting edge last longer.
- 45° high-helix geometry supports cleaner chip evacuation.
- Square end style is useful for clean corners, profiling, and side milling.
- Helps reduce chatter when the setup and cutting conditions are right.
- Works well for finish milling, contouring, profiling, and high-feed finishing.
- Suitable for steels, stainless steels, cast iron, titanium, alloys, Inconel®, and selected non-ferrous materials.
