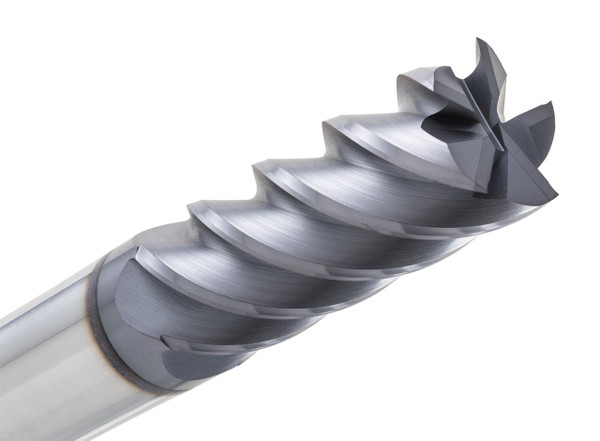

Product Overview
Engineered for high-performanc finishing, face milling, and precision machining, the 45032-ALTiN 5-flute square end mill is meant to deliver really nice surface finishes and, kinda importantly, keep extreme feed rates going during finishing. This 45000 Series Super Finisher tool kinda blends new cutting angles with premium solid carbide construction so you get strong accuracy, better throughput, and consistent surface quality.
The ALTiN coating, which stands for Aluminium Titanium Nitride , brings strong heat resistance , solid wear protection, and a longer-lasting edge. Because of that, it’s a good fit for high speed machining and tough production settings. And then the 45° high helix geometry helps with chip removal; it can lower vibration, and it supports a smooth, steady cut, so the end result stays high quality for those finishing passes.
Tool Specifications:
- Diameter: 1/2"
- Shank Diameter: 1/2"
- Length of Cut: 1-1/4"
- Overall Length: 3"
- Flutes: 5
- Style: Square End
- Coating: ALTiN
- Material: Solid Carbide
- Helix Angle: 45°
- Configuration: Single End
- Series: 45000 Series Super Finisher
- Part Number: 45032-ALTiN
Key Performance Features:
- Ideal for finish milling, side milling, contouring, profiling, and high-feed finishing operations.
- Supports applications requiring superior surface quality and dimensional accuracy.
- Recommended for machining steels, stainless steels, cast iron, titanium, alloys, Inconel®, and select non-ferrous materials.
- 5-flute design helps deliver smooth and consistent finishing performance.
- 45° high-helix geometry supports better chip evacuation and cutting stability.
- Advanced ALTiN coating provides excellent heat resistance.
- Helps improve tool life during demanding CNC machining operations.
- Suitable for CNC environments where consistent finishing performance is important.
