Product Overview

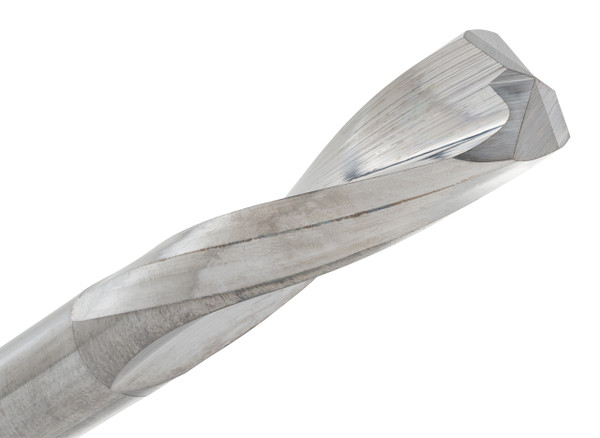

Clean, accurate hole-making at a common small size, that's the 506-1562 at 5/32" diameter. This 2-flute solid carbide drill is built for CNC shops that need repeatable hole quality and dependable carbide performance without any extras.
A 135° drill point supports clean entry and stable drilling action from the first hole to the last. With a 1" length of cut and 2-1/16" overall length, the 506-1562 offers practical reach for production drilling while staying controlled throughout the cut.
Tool Specifications:
- Diameter: 5/32"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 2-1/16"
- Flutes: 2 Flute
- Drill Point: 135°
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: Solid Carbide Drills
- Part No: 506-1562
Key Performance Features:
- 2-flute solid carbide drill built for accurate hole-making
- 135° drill point supports clean, controlled entry
- 5/32" diameter suits practical small-hole applications
- 1" length of cut gives useful drilling reach
- Uncoated carbide body performs well in standard conditions
- Suited to repeatable CNC drilling and production hole work
