Product Overview

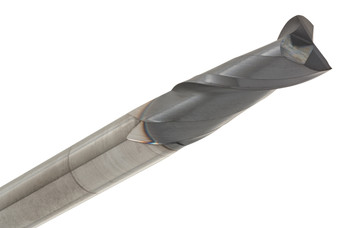

The CGS Tool 120-1562 is basically a 5/32" diameter, 2-flute solid carbide square end mill made for compact, everyday milling tasks. It’s handy for little slots , tricky profiles and those clean flat-bottom jobs where you want it to behave.
On top of that , with a 5/8" length of cut and a 2" overall length, this 120 Series cutter gives steady cutting control, especially inside smaller CNC areas. And because it’s uncoated carbide, it stays pretty practical for normal shop conditions, even when the materials are mixed or a bit unpredictable.
Tool Specifications:
- Diameter: 5/32"
- Shank: 3/16"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS 120 Series
- Part No: 120-1562
Key Performance Features:
- Compact milling work handled by a 2-flute square end design
- 5/32" diameter supports small machining features
- 30° helix keeps chip movement smooth
- Suited to slotting, profiling, plunge, and side wall milling
- Single-end solid carbide construction
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
