Product Overview

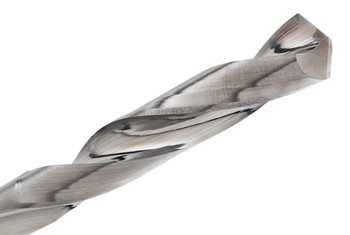

Deeper drilling at a 1/2" diameter really comes from the CGS Tool 507-5000, which is a 2 flute solid carbide drill from the 507 Series built for accurate hole making where the long flute length matters a lot.
That said, a 3" length of cut really helps in applications that want genuinely deep drilling, and the rigid carbide body keeps the hole quality consistent , even through repeated use. The uncoated build also works well for general drilling tasks where durability and repeatability come first.
Tool Specifications:
- Diameter: 1/2"
- Length of Cut (LOC): 3"
- Overall Length (OAL): 4-3/4"
- Flutes: 2 - Drill Point
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS 507 Series
- Part No: 507-5000
Key Performance Features:
- Solid carbide drill design for accurate and repeatable hole-making
- 2-flute drill point geometry supports controlled chip movement
- 3" length of cut supports deeper drilling applications
- Rigid carbide body helps maintain hole quality during machining
- Uncoated finish suited for general-purpose drilling work
- Built for CNC drilling, production machining, and toolroom use
- Strong option for shops needing dependable 1/2" carbide drilling performance
